Field Behavior

Introduction

What is field behavior

Field behavior refers to properties(required, read-only, hidden) in form fields

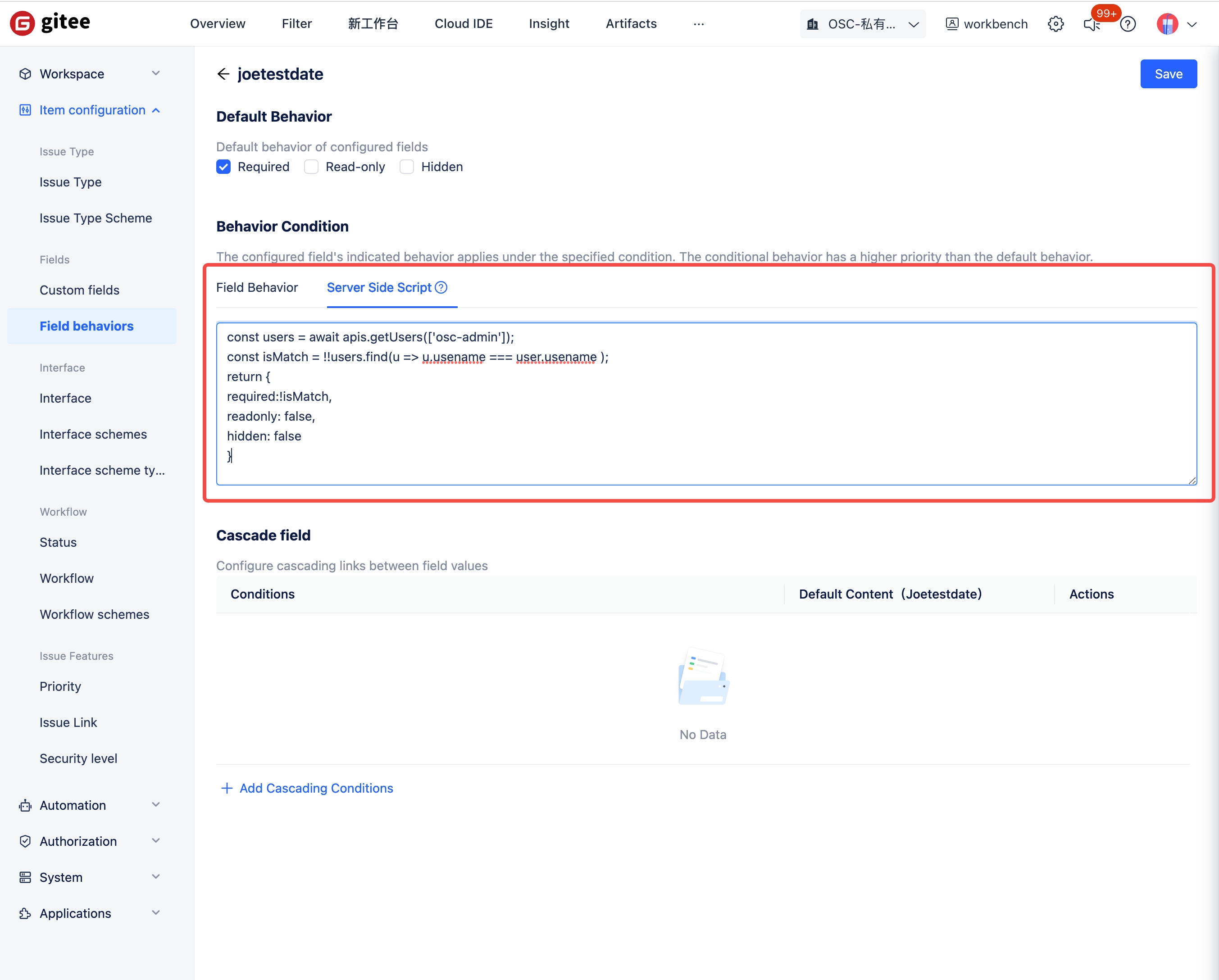

Field behavior script

Field behavior scripts allow for more powerful configuration of field behavior. Field behavior scripts can be added in the field behavior configuration:

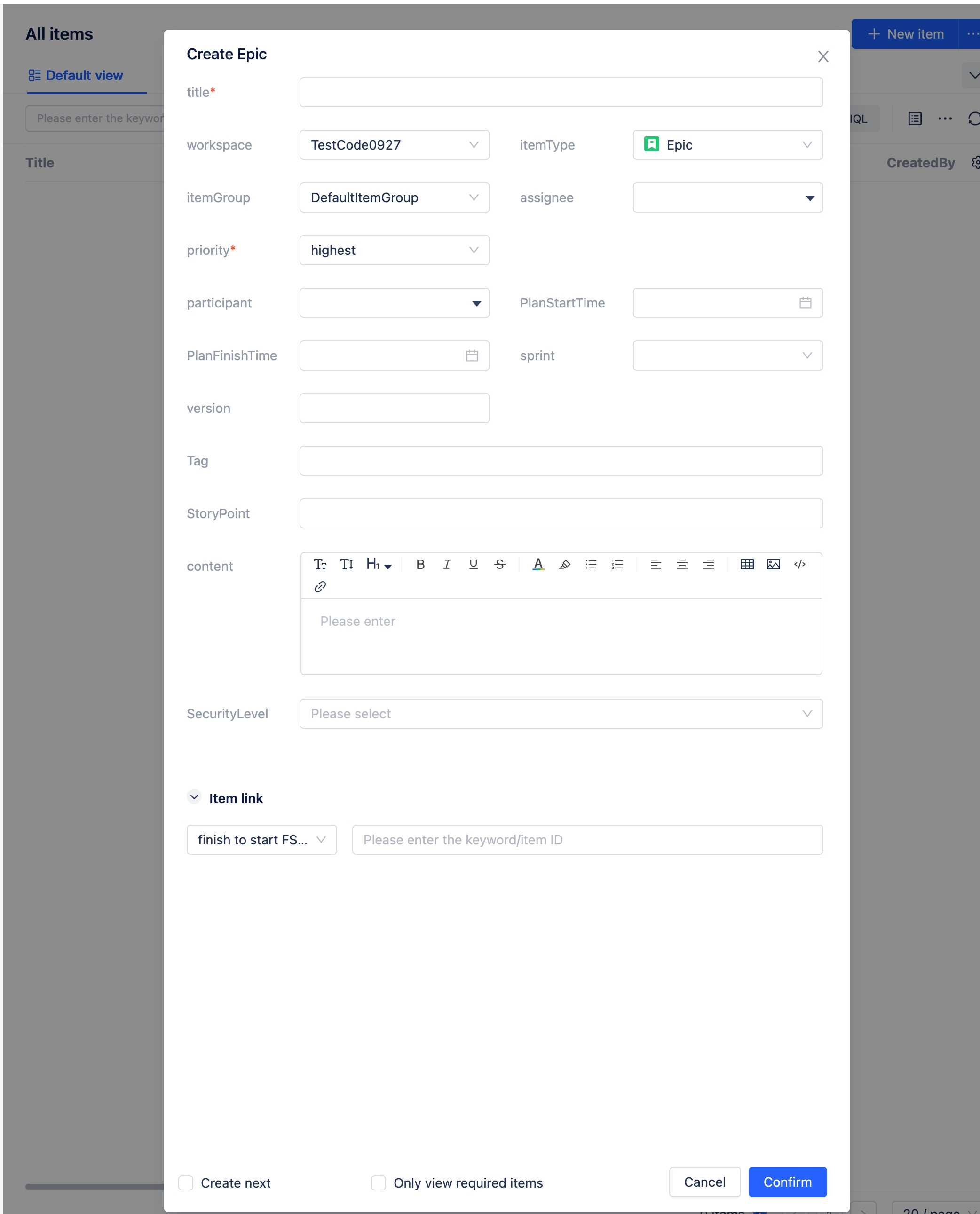

Field behavior take effect

After configuring the field behavior, it can take effect in the following forms:

Script parameters

The following parameters can be used directly in the script:

name	type	description
itemId	String	Item id
item	ItemJSONObject	Item data
transition	String	Workflow action name
currentState	String	Current state
user	User	User info
screen	String	Screen type: view,create,edit
workspace	String	Workspace id
workspaceKey	String	Workspace key
itemTypeId	String	Item type id
roles	Role[]	System roles
workspaceRoles	WorkspaceRole[]	Workspace roles

According to the provided parameters, cooperate with the function capabilities provided by the system, and finally return the corresponding field behavior(required、readonly、hidden)

Api reference

getScreen

Get screen data

API PARAMETERS:

name	type	required	description
screenId	String	true	Screen id

RETURN:

ScreenObject - Screen data

interface ScreenObject {
  objectId: ObjectId;
  name: string;
  customFieldKeys: string[];
}

EXAMPLE:

const screenData = await apis.getScreen(screenId);

return {
  required: screenData.name === 'screen name',
  readonly: false,
  hidden: false
}

getUsers

Get users by usernames

API PARAMETERS:

name	type	required	description
users	String[]	true	Usernames

RETURN:

SimpleUser[] - Simple user data

interface SimpleUser {
  id: string;
  username: string;
}

EXAMPLE:

const users = await apis.getUsers(['milo', 'onion', 'osc-admin']);
const isMatch = !!users.find(u => u.username === user.username );
return {
  required: isMatch,
  readonly: false,
  hidden: false
}

getItem

Get item data

API PARAMETERS:

name	type	required	description
itemId	String	true	Item id

RETURN:

ItemObjectProps - Item data

EXAMPLE:

const itemData = await apis.getItem(itemId);
return {
  required: itemData?.statusName === 'CLOSED',
  readonly: false,
  hidden: false
}

getWorkflowIdByItemId

Get workflow by item id

API PARAMETERS:

name	type	required	description
itemId	String	true	Item id

RETURN:

Workflow - Workflow data

EXAMPLE:

const workflow = await apis.getWorkflowIdByItemId(itemId));
return {
  required: workflow?.name === 'SYSTEM DEFAULT WORKFLOW NAME',
  readonly: false,
  hidden: false
}

getRolesByUserId

Get user role by user id

API PARAMETERS:

name	type	required	description
userId	String	true	User id

RETURN:

Role[] - The user system roles

EXAMPLE:

const roles = await apis.getRolesByUserId(user.objectId);
const notMatch = !roles.find(role => role.name === 'QA' );
return {
  required: false,
  readonly: notMatch,
  hidden: false
}
