View action

This module supports the application to display the operation entry in the view and perform related operations.

Manifest example

modules:
  viewAction:
    - key: view-action-key
      resource: main
      title: View Action Title
      loadType: micro
      route: /main
      placement: left
      viewType:
        - gantt
resources:
  - key: main
    path: ./dist/

Properties

name	type	required	description
key	String	Yes	A key for the module, which other modules can refer to. Must be unique within the manifest. Regex: ^[a-zA-Z0-9_-]+$
resource	String	Yes	A reference to the static resources entry that your item panel wants to display. See resources for more details.
title	String	Yes	The title of the item activity, which is displayed as a panel item
loadType	Micro | remoteJs	Yes	The app's rendering method
route	String	false	The app route, default /
viewType	('default'|'structure'|'kanban'| 'gantt')[]	true	The view types displayed by this extension point are all selected by default: default list, structure list, Gantt chart, and Kanban.
placement	'right'|'left'	false	The position of this extension point relative to the default view action can be either right or left, or dropdown to indicate the menu for more dropdown actions. The default is left.

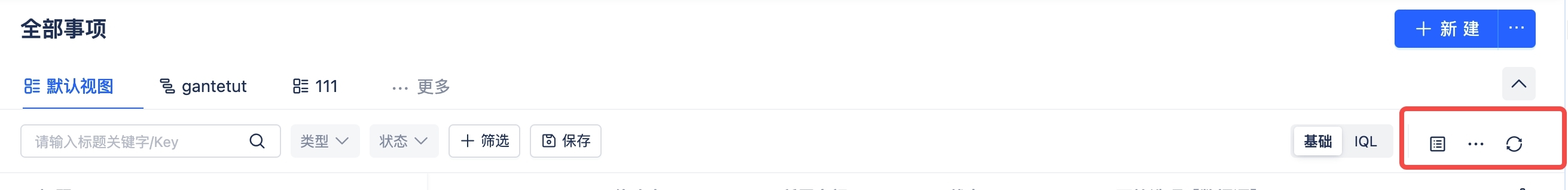

The module display

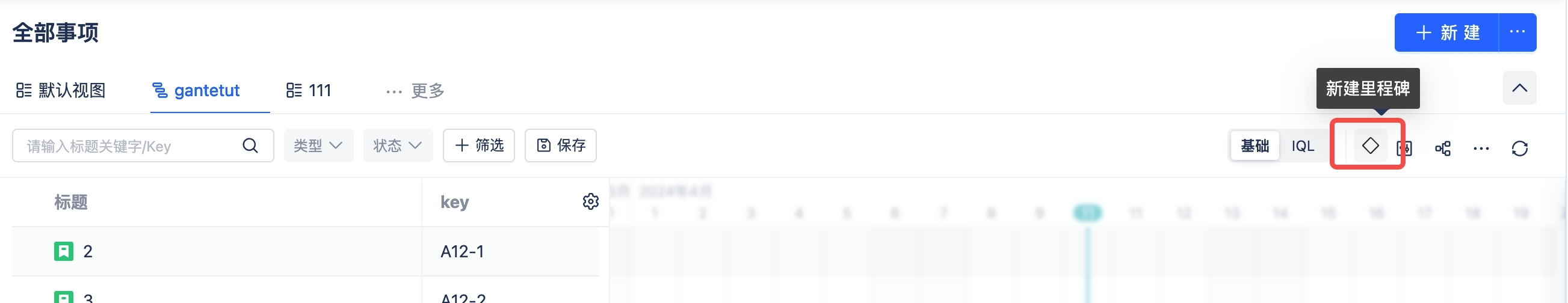

placement=left

• Placed on the left side of the view action bar.
• The displayed icon and click events are rendered by the application.
• As shown in the figure, the button is rendered by the application code.

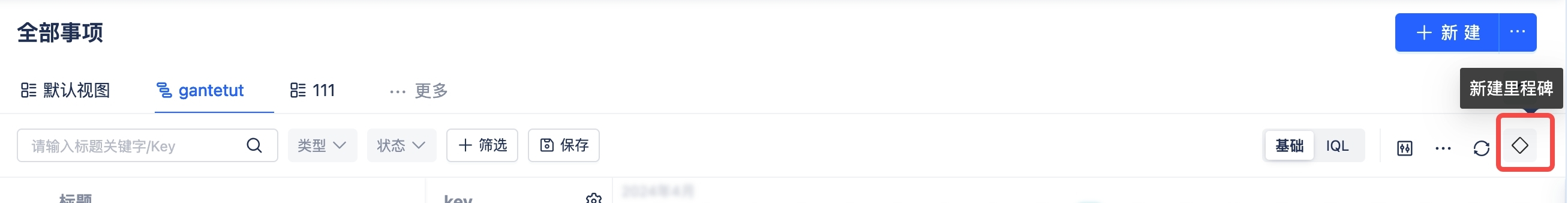

placement=right

• Placed on the right side of the view action bar.
• The displayed icon and click events are rendered by the application.
• As shown in the figure, the button is rendered by the application code.

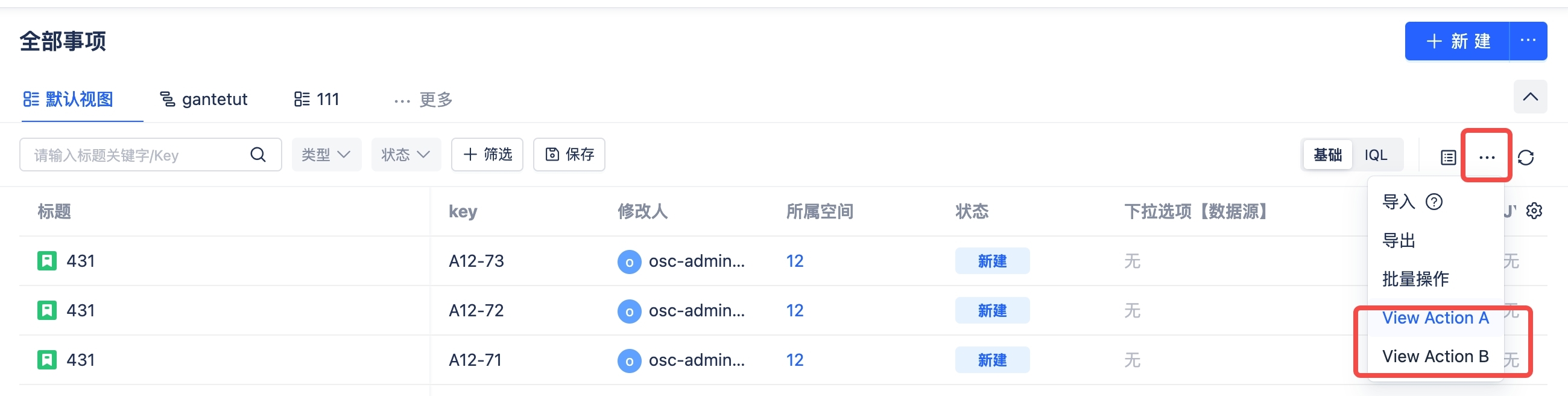

placement=dropdown

• Placed in the dropdown menu of the view action bar's more actions button.
• The displayed menu name is determined by the title in the manifest, after clicking, a popup will appear, the content of the popup is rendered by the application code.

• After clicking, a popup will appear, as shown in the figure:

context

In your application you can use the following parameters

Property	Type	Description
workspaceId	string	The id of the current workspace
boardId	string	The id of the current board
viewId	string	The id of the current view
iql	string	The iql of the current view

Close the current modal

You can close the modal rendered by the current application through closeModal.
