Workflow Condition

The proxima:workflowCondition module can create a workflow transition rule.

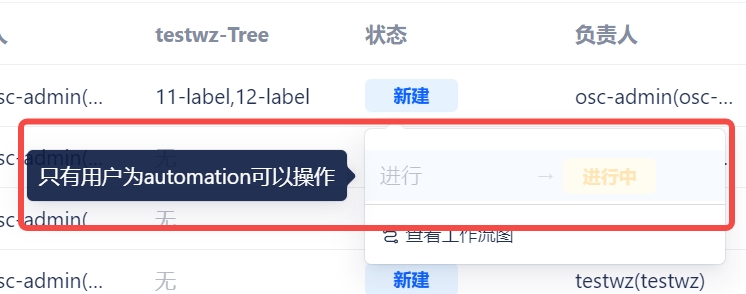

The workflow transition rule can determine whether a user can execute the transition. If the rule returns false, the user cannot click to transition.

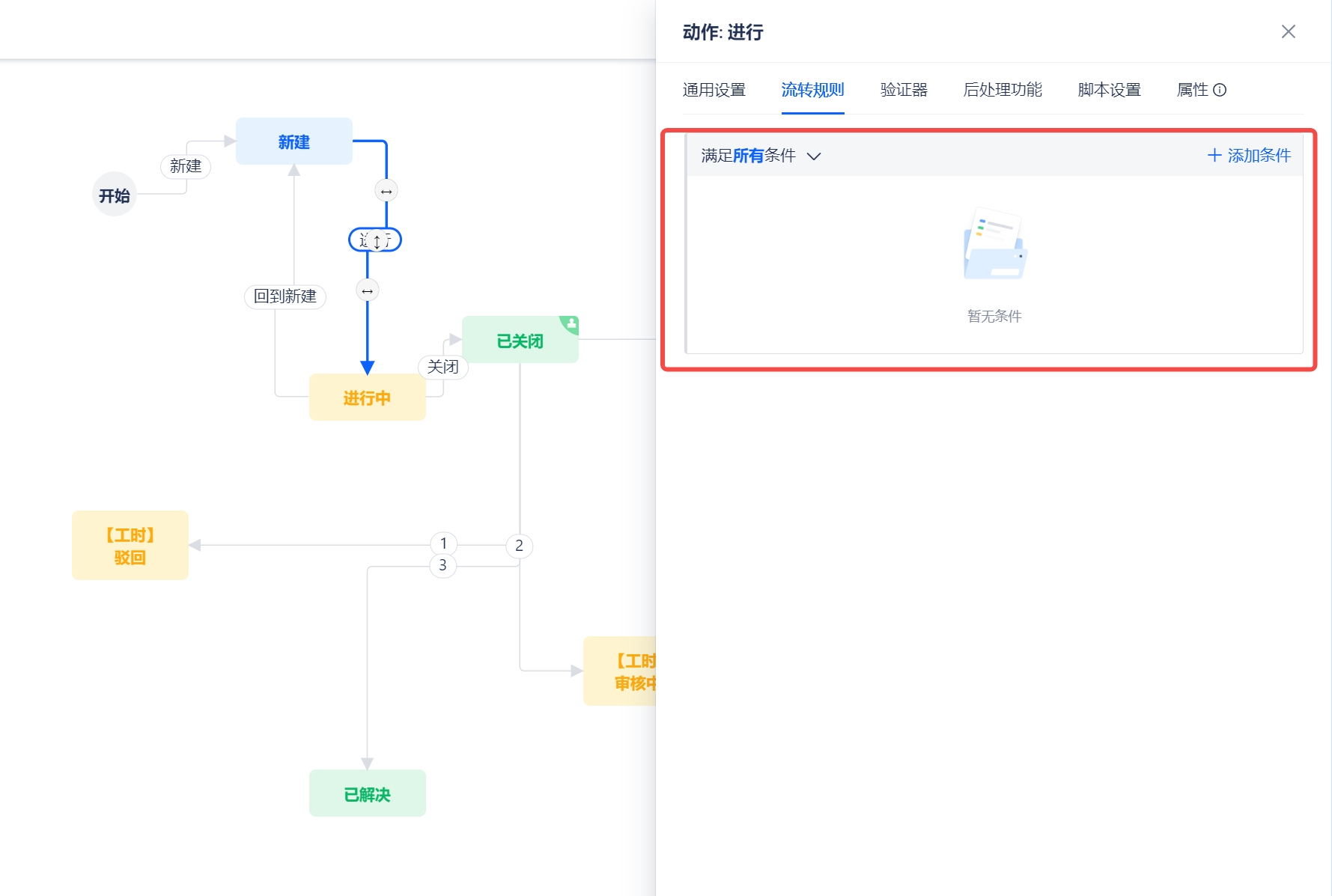

Configure team expressions on workflow transition rules

You can configure team expressions to return the result of the transition rule.

For example, you can configure the following in the plugin's manifest, where expression is the expression and errorMessage is the prompt message.

modules:
  proxima:workflowCondition:
    - key: my-workflow-condition
      title: Assignee Required
      description: The assignee must not be empty to transition
      expression: item.values.assignee?.length > 0
      errorMessage: The assignee cannot be empty

tip

The expression can use the following properties:

• item - [Item]
• currentUser - [User]
• workspace - [Workspace]

interface Item {
  name: string; // item name
  key: string; // item key
  objectId: string; // item id
  values: Record<string,any>; // item custom field value
  itemType: { // item type
    objectId: string;
  },
  status: { // item status
    objectId: string
  };
}

interface User {
    objectId: string;
    createdAt: string; // creation time
    updatedAt: string; // update time
    username: string; // user name
    email: string;
    enabled: boolean; // Whether to enable
    deleted: boolean; // delete or not
    nickname: string;
    language: string; // language (e.g. 'zh-CN')
}

interface Workspace {
  createdAt: string; // creation time
  updatedAt: string; // update time
  name: string;  // workspace name
  key: string; // workspace key
}

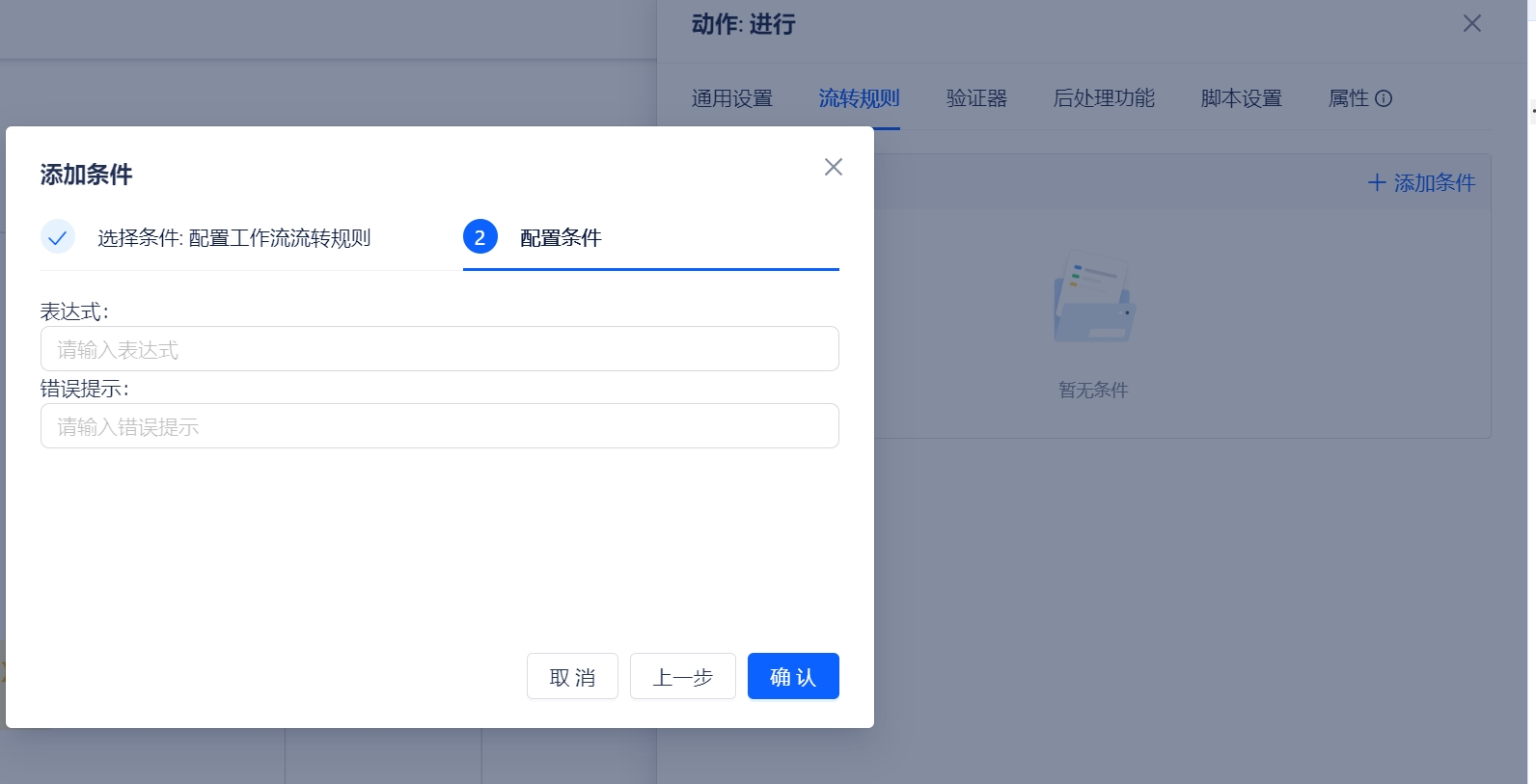

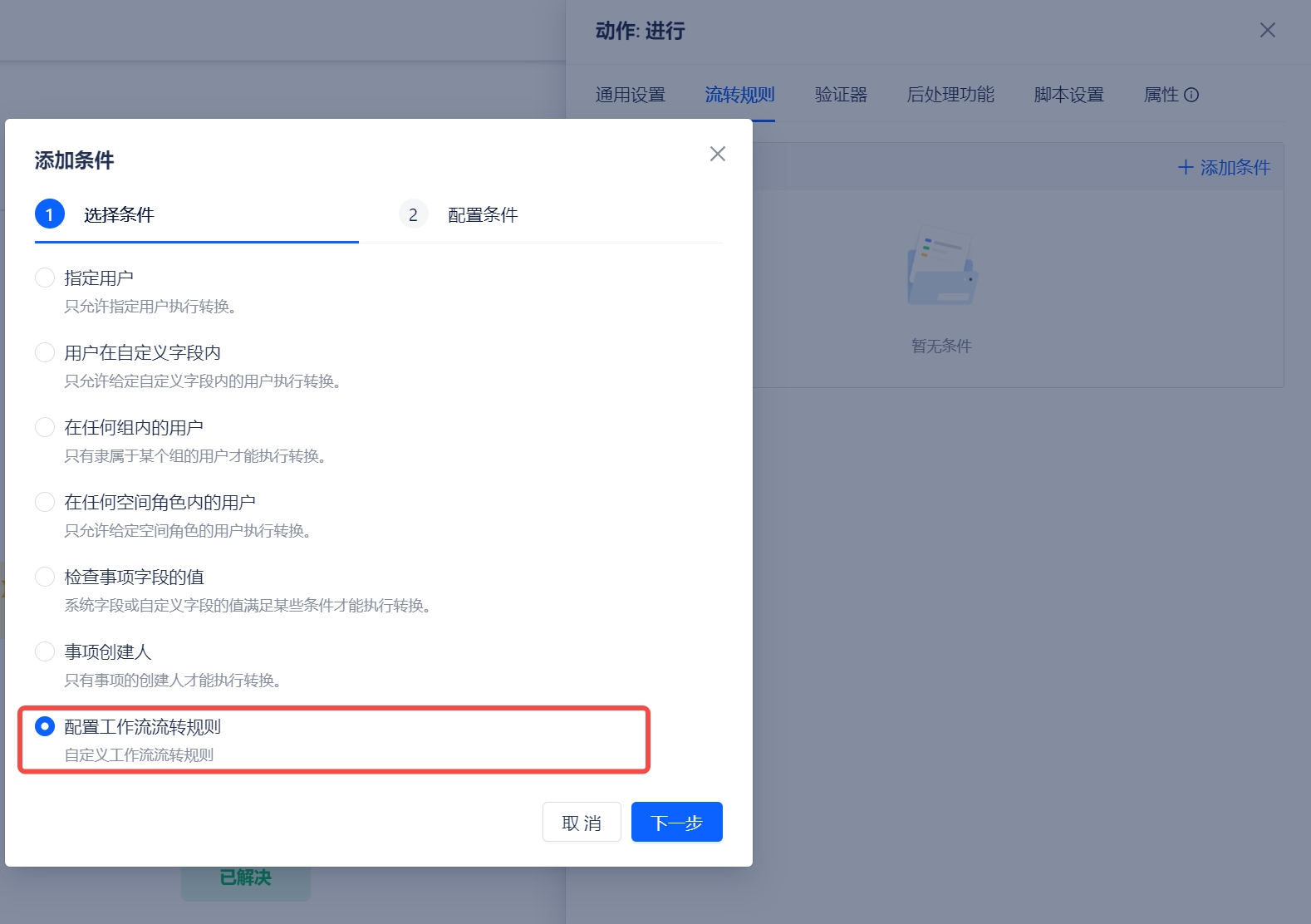

Configure transition rules through a custom UI

You can configure rules in the transition rule through a custom UI. The following three pages need to be configured:

• create: The page when creating the workflow transition rule
• edit: The page when editing the workflow transition rule
• view: The page when displaying the workflow transition rule

On the create and edit pages, you need to save the configuration information through the handleWorkflowConfigChange API.

Manifest example

modules:
  proxima:workflowCondition:
    - key: my-workflow-condition
      title: Configure Workflow Transition Rules
      description: Custom workflow transition rules
      create:
        route: /workflow-condition-create
      edit:
        route: /workflow-condition-edit
      view:
        route: /workflow-condition-view
      resource: main
      loadType: Micro
resources:
  - key: main
    path: /dist

Overriding expression and errorMessage

The handleWorkflowConfigChange method can override the expression and errorMessage configured in the manifest.

import { Input } from 'antd';

const WorkflowConditionCreatePage = (props) => {
  const { context } = props;
  const handleWorkflowConfigChange = context?.modal?.handleWorkflowConfigChange;

  const onChange = (key, value) => {
    handleWorkflowConfigChange({ [key]: value });
  };

  return (
    <div>
      <div>Expression:</div>
      <Input placeholder="Enter expression" onChange={e => onChange('expression', e.target.value)} />
      <div>Error Message:</div>
      <Input placeholder="Enter error message" onChange={e => onChange('errorMessage', e.target.value)} />
    </div>
  );
};

export default WorkflowConditionCreatePage;
